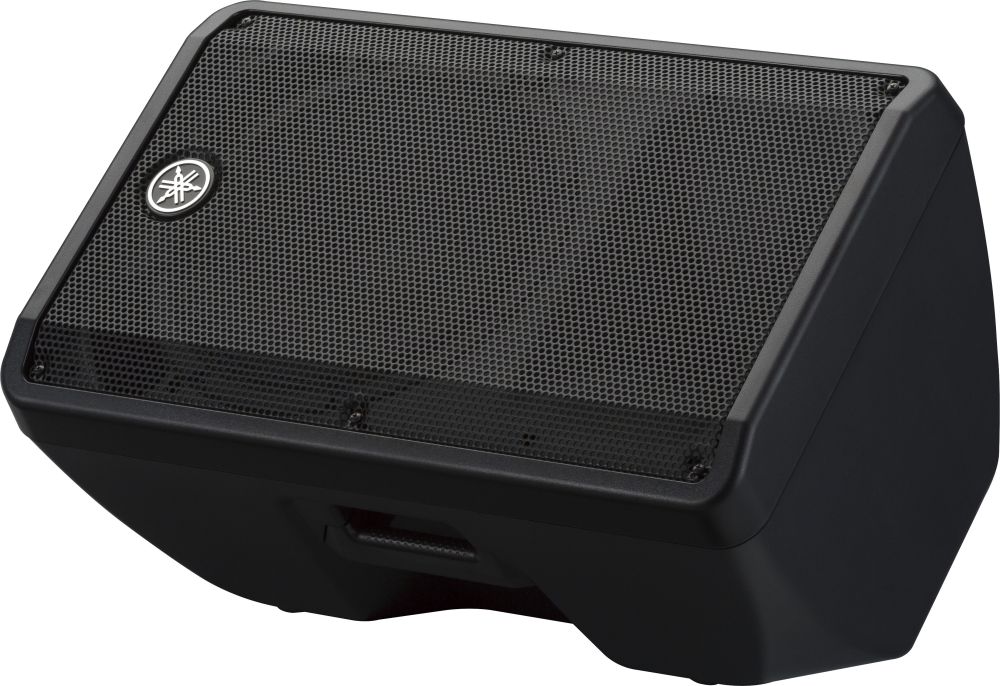

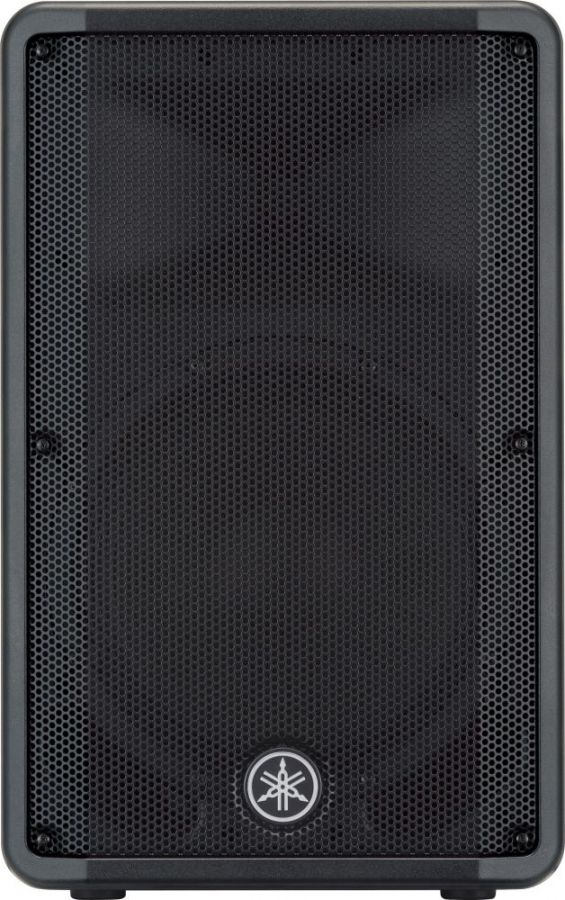

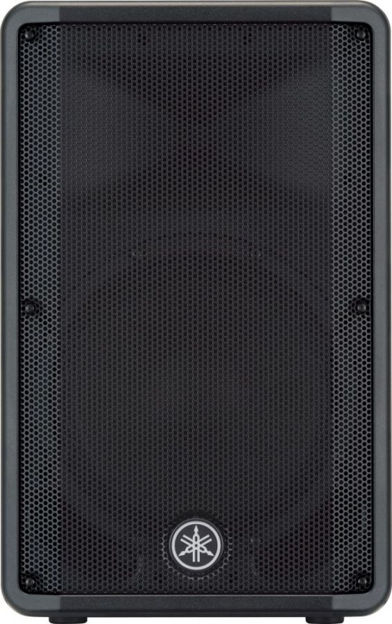

Yamaha DBR12 Powered Speaker System

DBR12 er ofte en god løsning for den som er ute etter en rimelig høyttaler som er robust og driftssikker. DBR12 som front-of-house, gulvmonitor og som monitorer fra siden.

Spesifikasjoner

• Speaker type - 2-way, Bi-amp powered speaker, Bass-reflex type
• Frequency range - (-10dB) - 52Hz – 20kHz
• Nominal Coverage - Horizontal - 90°, Vertical - 60°
• Low Frequencies - Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
• High Frequencies - Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
• Crossover - 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Output power - Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
• Maximum output level (1m; on axis) - 131dB SPL

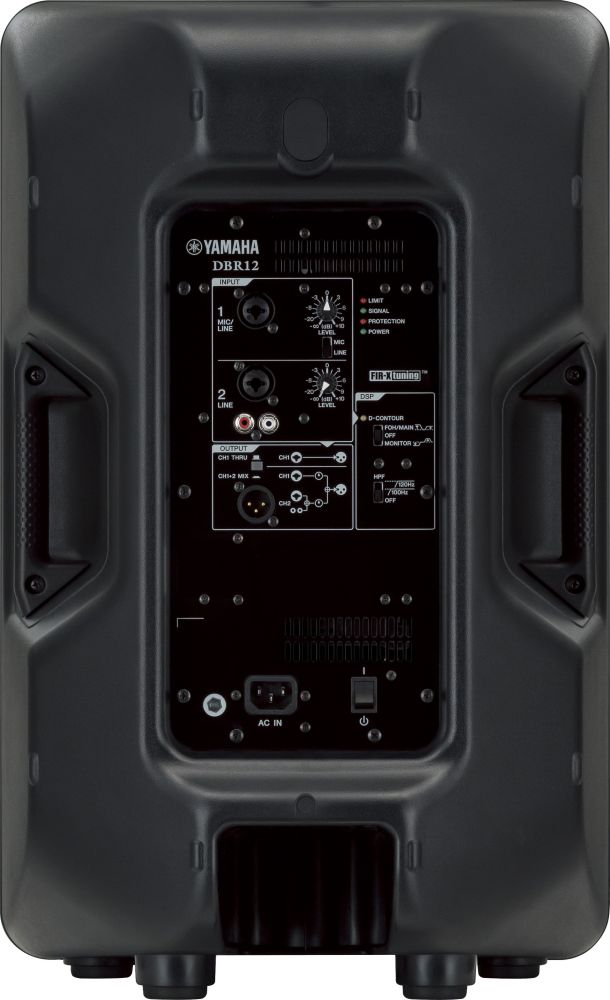

• I/O connectors - INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors - D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Cabinet material - Plastic
• Width - 376mm (14.8")
• Height - 601mm (23.7")
• Depth - 348mm (13.7")
• Net weight - 15.8 kg (34.8 lbs)
