HIGH STANDARDS, LOW PROFILE
With a 19-inch width, the horizontally oriented A44H can sit on a standard rack shelf or be mounted above or below a display. The completely new design also enables the A44H to serve as a center speaker in immersive and 3D speaker configurations.

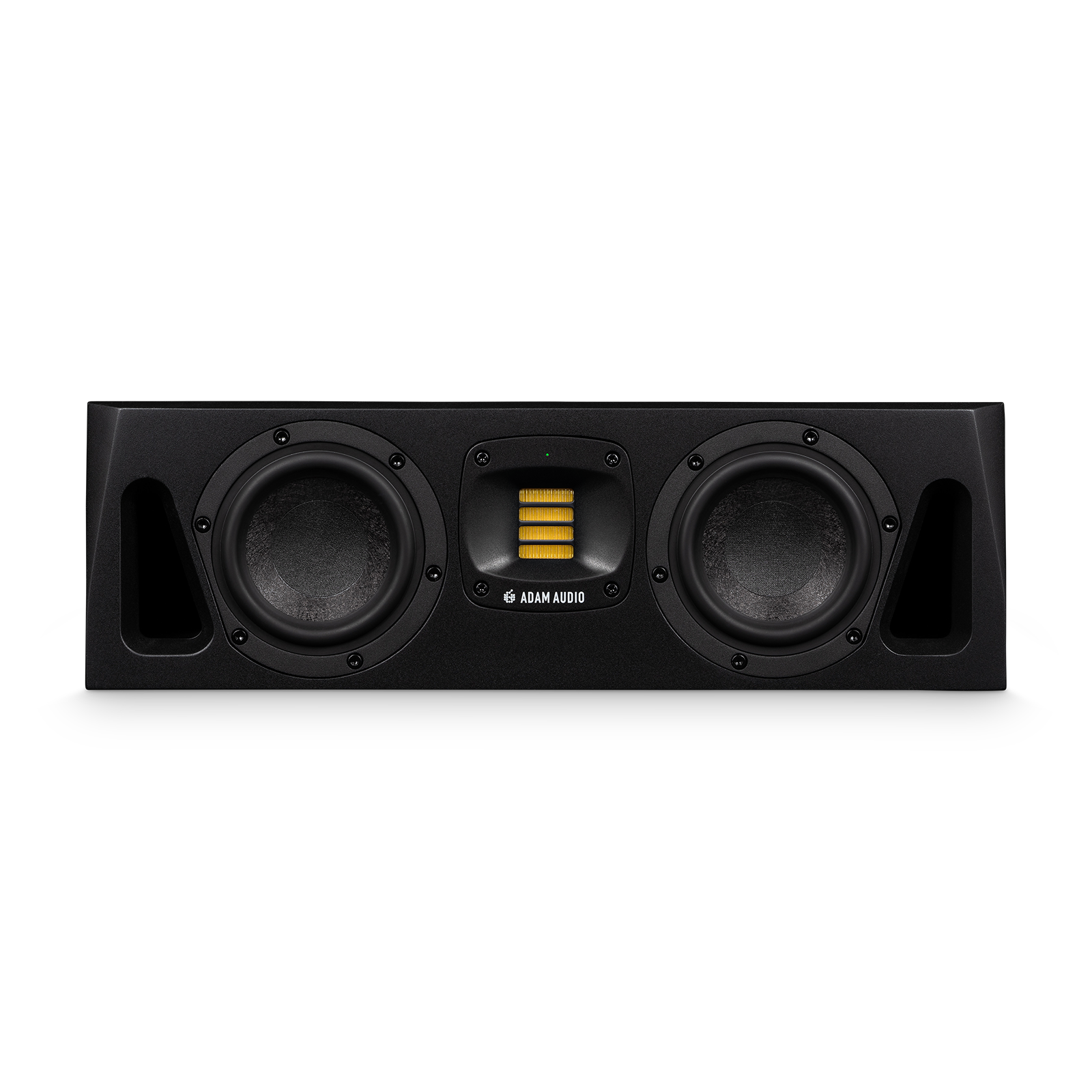

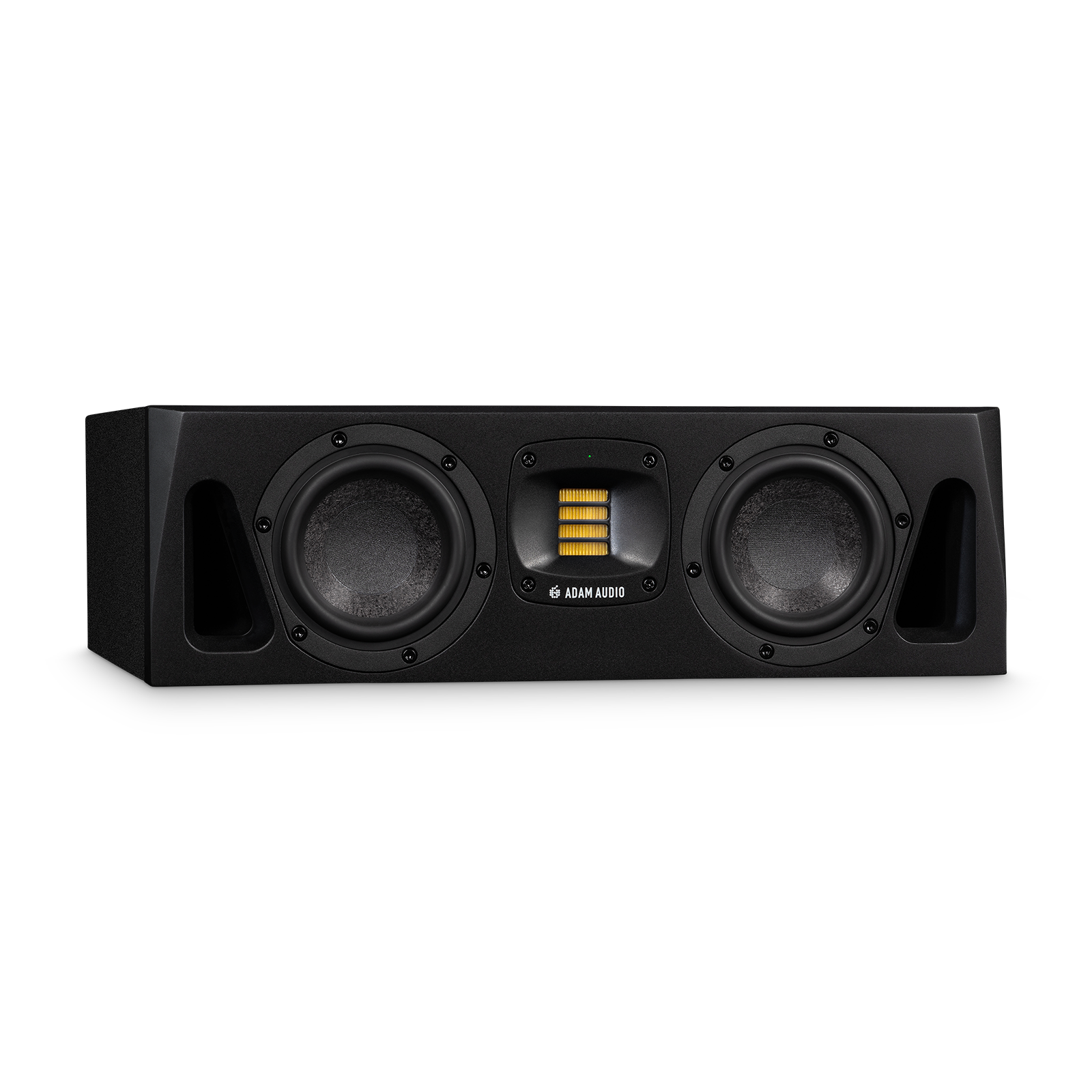

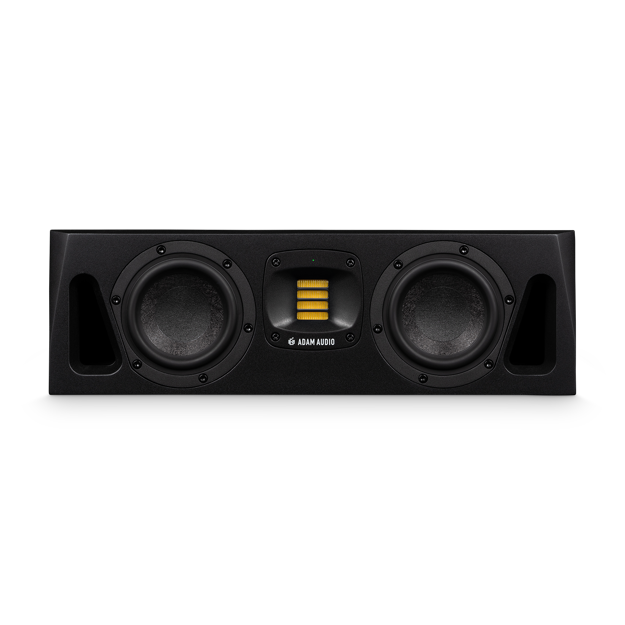

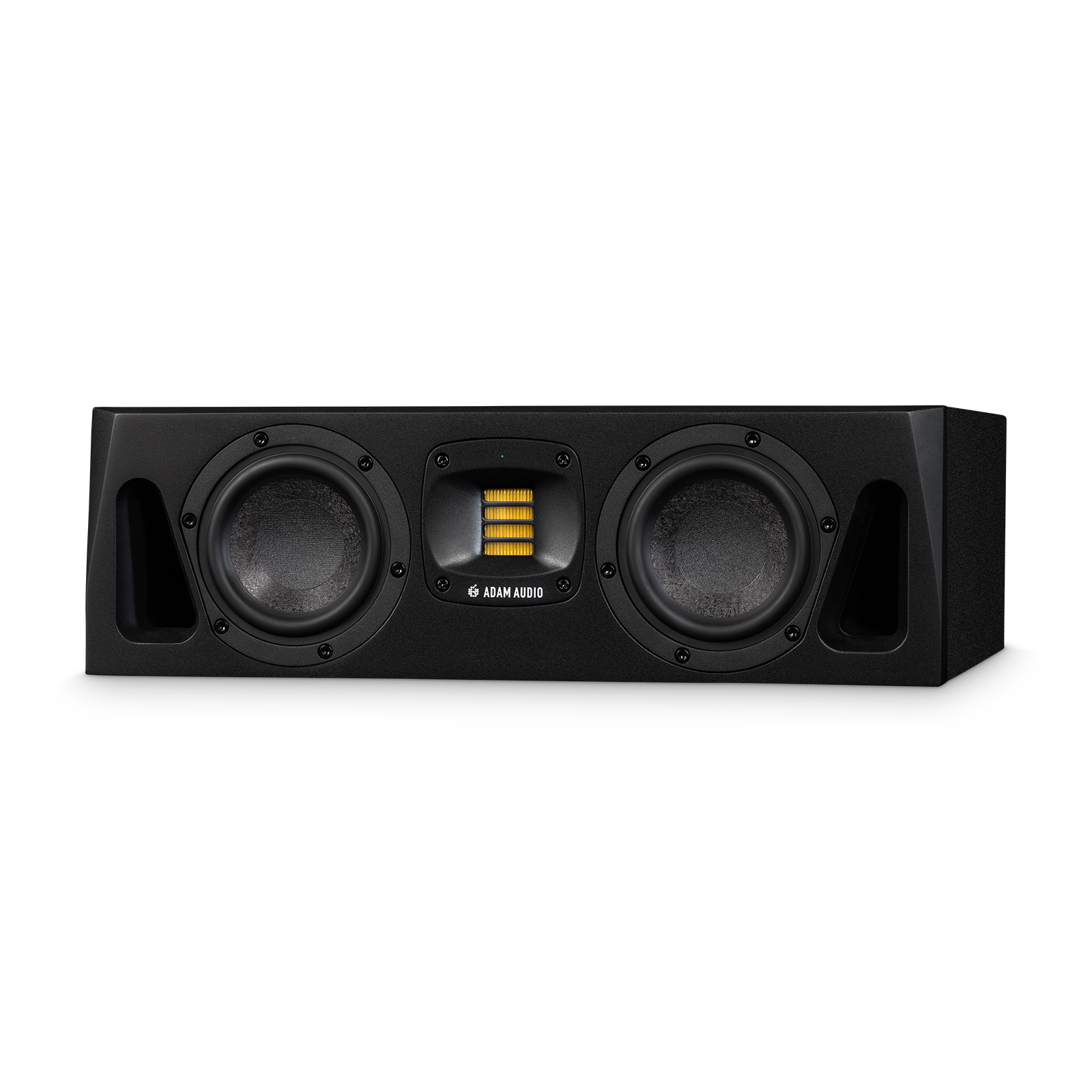

Dual 4-inch long-throw woofers and the X-ART tweeter deliver a wide frequency range, while onboard DSP-based tuning capabilities enable you to tweak the sound easily.
EXPLORE THE TECHNOLOGY ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A44H.
Specs: - Display: Front panel multi-colour LED
- Cabinet Design: Dual front ported
- Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC Input Voltage: 100 – 240 V, 50/60 Hz
- Power Rating: 300 W max.
- Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
- Weight: 9.7 kg (21 lbs 6 oz)
- Dimensions (Height x Width x Depth): 135 mm x 432 mm x 350 mm (5 3/8″ x 17″ x 13 3/4″)
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: A44H loudspeaker, power cable, Quick Start Guide
Audio Input:
- Analog: XLR, RCA
- Input Impedance: 9 kOhm / 3.3 kOhm
- Max. Input Level: +19 dBu
Amplification - Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 110 W
- RMS (1% THD, limiter deactivated): 90 W
- Tweeter
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 20 W
- RMS (1% THD, limiter deactivated): 15 W

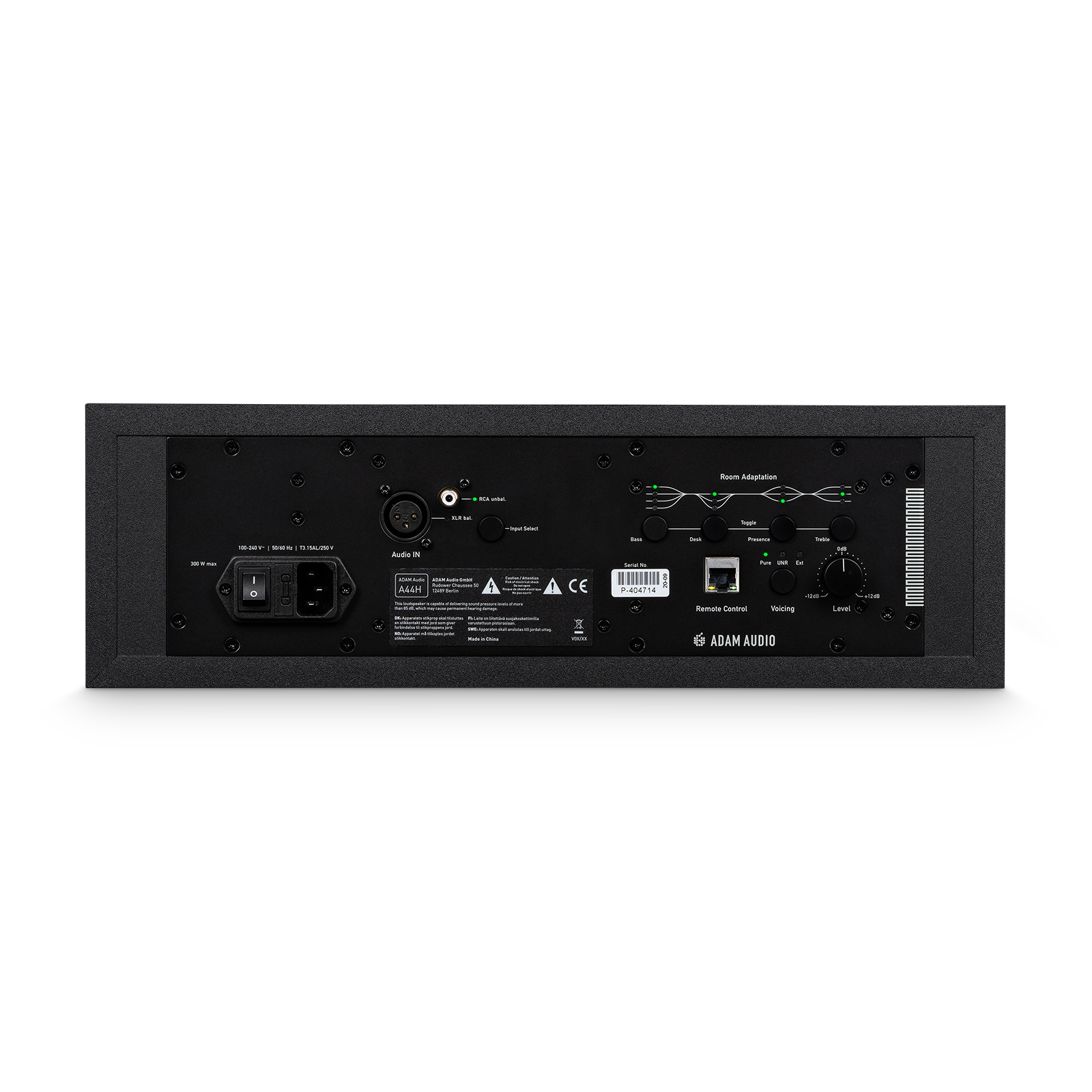

Control Options [via Network] - Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
Acoustics - Frequency Response @ -3 dB: 49 Hz – 41 kHz
- Frequency Response @ -6 dB: 46 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m (sine bursts): 103 dB SPL
- Max. peak SPL per speaker at 1 m (IEC-weighted noise): 110 dB SPL
- Crossover Frequencies: 2.4 kHz
Drivers - Woofer
- Basket Diameter: 2 x 4″
- Voice Coil Diameter: 1″ (25 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equivalent Diaphragm Diameter: 2″ (56 mm)
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal, 70° vertical
Signal Processing - AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Options [via Backplate] - Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input Selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption:
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
